Overview

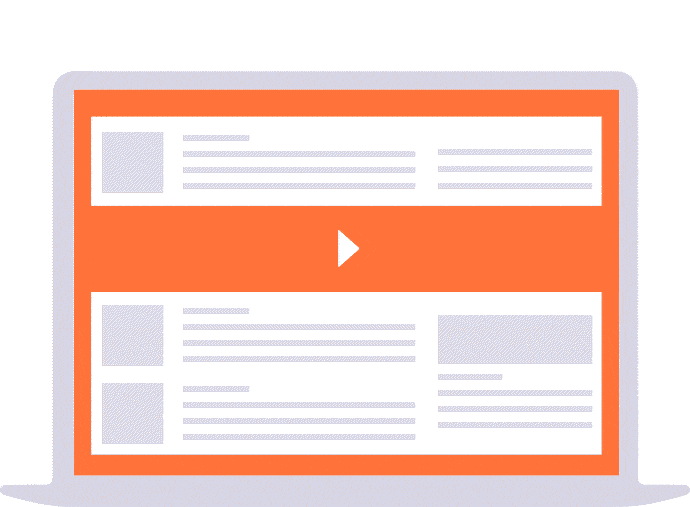

Formerly named "Smart Video-Screening". The "Video canvas" creative template displays a video ad in the background, expanding to full-screen mode on mouse over.

Demo

Video canvas demo

Compliancy

Criterion	Compliancy
RTB	❌
VAST 4.2 and lower	✅
VAST wrapper	✅
VPAID	✅
SIMID	❌
Creative rotation	✅
Responsive web design	✅
Friendly iFrame	✅
Viewability counting (MRC standard)	✅

Creatives

• Creative #1: optional banner; supported file formats: image (use transparency for better effects), creative script, HTML5
• Creative #2: optional video; supported file formats: mp4, webm (use files with high resolution and bitrate) - or - any VAST redirect containing the formats: mp4, ogg, webm, javascript (for VPAID only)
• Creative #3: optional banner shown after close; supported file formats: image, creative script, HTML5

Note 1: In case of VAST redirects, use the "Paste script" creation method and paste the URL or the entire XML into the "Creative script" field.

Note 2: If the first or third creative is an creative script or HTML5, make sure you specify the size

Note 3: If there is no third creative, the first creative will be displayed after close

Note 4: To get the behavior shown in this sample (transparent banner), add the first creative as an creative script and specify the width and height; then add the following code to make it transparent

<div style="width:750px;height:200px"></div>

Note 5: To avoid showing the banner after close (third creative), add the third creative as an empty creative script and set its width and height to 0.

Note 6: In case of VAST redirects, the ad format picks the most appropriate file to play according to the following priorities: (1) mp4, (2) webm, (3) ogg, (4) javascript

Creative template parameters

Name	Description	Default value
Options
Place of ad	Specifies where the ad should be placed	top
zIndex	zIndex of the expanded video; max. value: 999999999	9999
Tracking url	Make sure you add [timestamp] to the URL for cache busting
Player controls options
Controls bar opacity	Specifies the opacity of the control bar	0.5
Controls bar mode	Specifies the bar mode	FLOATING
Player play/pause button	Specifies if the player has play/pause buttons	true
Player volume button	Specifies if the player has a volume button	true
Player controls color	Specifies controls color	#cccccc
Loop video	Specifies if the video will be looped; this option is taken into account only for the video in background mode; in fullscreen mode, the video will not be looped	false
Video starts from beginning in expand mode	Specifies if the video starts from the beginning in expand mode	true
Pause on tab changing	Stops the video while changing browser tabs	true
Duration label	Specifies the duration label; Note: Use {0} in label to count down the time until the end of the ad	End of break ad in {0}s
Background video opacity	Specifies the opacity of the video background	0.8
Background vertical offset	Specifies the vertical offset of the background video, positive number: to the bottom; number with "-": to the top	0
Close button options
Default close button image	Specifies if the default close button image appears	true
Close button text	Can be text and HTML
Close button link color	Specifies the close link color	#cccccc
Close button font size	Specifies the size of the close font (in px)	14
Close button position	Specifies the position of the close button	topRight
Show close button at the beginning	Shows the close button also before expand mode	false
Start expand options
Hover over banner starts expand	Specifies if hover over the banner starts counting to expand	true
Click starts expand	Specifies if click starts expand	false
Click map options
Page width	Specifies the page width to use the click map feature	0
Click map width (right and left side)	Specifies the click map width for both sides	5000
Click map height (right and left side)	Specifies the click map height for both sides	1000
Click map zIndex	Specifies the zIndex of the click map	9999
Click map horizontal offset	Specifies the horizontal offset of the click map; positive value: to the right side;  value with "-": to the left side	0
Click map vertical offset	Specifies the vertical offset of the click map; positive value: to the bottom; value with "-": to the top	0
Show click map test border line	Show border line over the clickmap; this option is supposed to help with the setup of the click map position	false

Features

Event listening

The Video canvas supports the following events: adBegin, adDuration, adEnd and adError. You can listen to these events to control the functioning of your site.
Any event contains the parameter formatId to get which formatId (on the page) fired the event:

window.addEventListener('adBegin', function (e) {
	console.log(e.formatId);
});

adBegin / adEnd
For instance, if your website has a video player playing video content, you can mute that player when the ad appears and unmute when it disappears:

window.addEventListener('adBegin', function (e) {
	document.querySelector('video').muted = true;
});

adDuration
The adDuration provides access to the videoDuration property, which can be useful to retrieve the duration of the whole video ad:

window.addEventListener('adDuration', function (e) {
	console.log(e.videoDuration);
});

adError
To take an action when there is an error or the VAST is empty:

window.addEventListener('adError', function (e) {
	console.log("Ad error occured");
});

Force VPAID media files

To update media files selection and prioritize VPAID creatives the sasVpaidFirst variable can be used with a value of true. The below snippet can be added as a custom script:

<script> sasVpaidFirst = true; </script>

Metrics

The player and data logging start immediately. The Equativ visibility events always have a value of 100. Equativ logs the "fullscreen" event when the user goes to fullscreen mode.
Also see the Video metrics article.

Limitations

Known issues

Release notes

• 25-09-2024 - Add support for OMSDK
• 24-01-2024 - Removed support for obsolete macros
• 05-04-2023 - Update sas-libs version to 1.1
• 27-03-2023 - Select the most appropriate creative encoded version based on bandwidth and resolution
• 13-05-2020 - Remove start muted custom parameter
• 25-03-2019 - Hide player controls in non-expand mode
• 05-02-2019 - Viewability module improvements - Measures are now more accurate and more integrations are covered
• 15-10-2018 - Fix for creatives as creative script
• 02-07-2018 - Removed support for flash video creatives
• 25-04-2018 - Parse RTB parameters into strings
• 06-03-2018 - Additional RTB parameters in event trackers
• 19-02-2018 - Enable viewability counting by default
• 30-01-2018 - Updated tracking urls
• 22-01-2018 - Updated meta parameters
• 20-12-2017 - Code refactoring + VAST4 support
• 24-08-2017 - Add click map
• 16-08-2017 - Support for standalone tag
• 28-06-2017 - Support for tagId ad call parameter
